Main Applicaton

Corrosion Resistance


The Ghalib International Stainless Steel Division has developed advanced methonds for the manufacture of pipes and fittings with high corrosion resistance. Throughout the years, the Division has acquired a wealth of experience supplying proudcts for some of the most important country projects. Many power staitions in Pakistan have been supplied with pipes and fittings from the Ghalib International Group

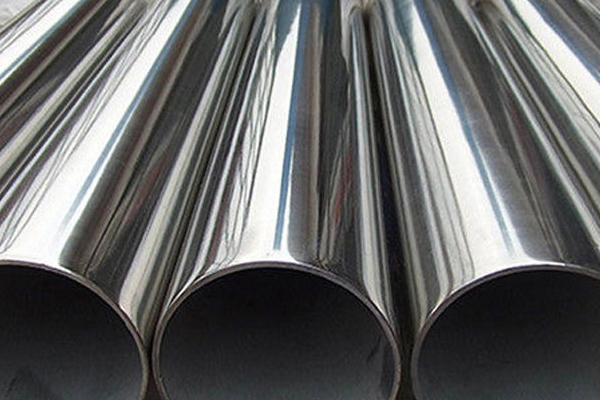

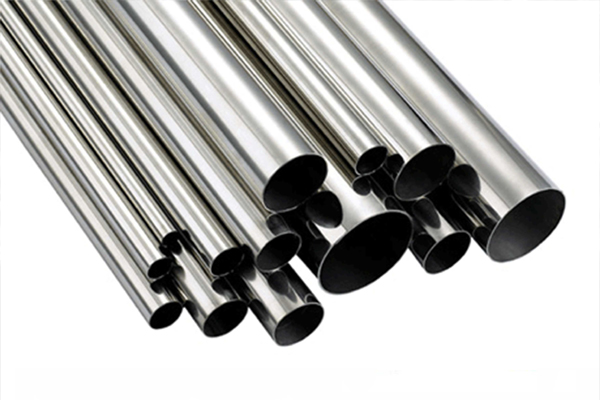

Ghalib International welded stainless steel corrosion resistant pipes can be manufactured either from quarto plate or from coils. They can be produced either by continuos welding line, rolling machine or press

OUTSIDE DIAMETER WALL THICKNESS AREA OF INTEREST

mm 6,00 ÷ 273 mm

mm 0,50 ÷ 12 mm

Chemical, petrochemical, cryogenic off-shore & on-share, oil & gas, shipyard, power plants


Products Details

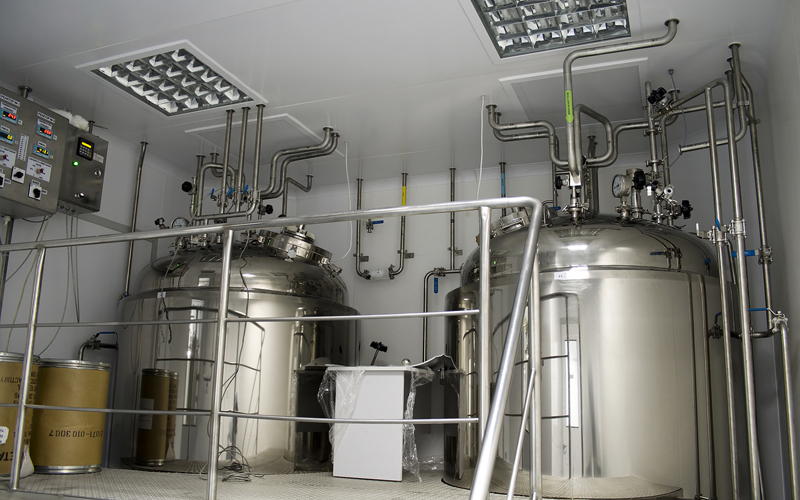

Food Industry

These type of tubes are manufactured exclusively form stainless steel cold-rolled, heat-treated strip (finished grade 2B) and the manufacturing process has been studied to meet the specific requirements of the food industry.

OUTSIDE DIAMETER WALL THICKNESS AREA OF INTEREST

Standard mm 18,00 ÷ 204

Standard mm 1,00 ÷ 200

Food industry, in particulars for transport and process of milk, soft drinks, spirits...


Heat Exchanger

The Ghalib international Stainless Steel Divison can offter a complete and wide range of tubes & pipes highly resistant ot gas and fluid corrsion at high temperature whilst maintaining the requested mechanical characteristics.

The main applicaiotns are: condensers, evaporators, boilers and super-heaters used in the most critical areas of such fundamental plants an conventional and poer staions, petroleum, refineries, chemical and petrochemical plants, sugar mills,...

After heat treatment the tubes can be both expanded and U-bent. The tubes are always Eddy-Current tested, during welding and off line at the end of the production cycle.

Furthermore, in the sector, the Ghalib International Group can offer, through its Non Ferrous metals Division,

OUTSIDE DIAMETER WALL THICKNESS AREA OF INTEREST

Standard mm 12,00 ÷ 5,80

Imperial sizes 1/2" ÷ 2"

Standard mm 0,50 ÷ 2,77

Heat Exchangers, condensers and air cooler, power plants, petroleum refineries, chemical & petrochemical plants...


...
...
...
